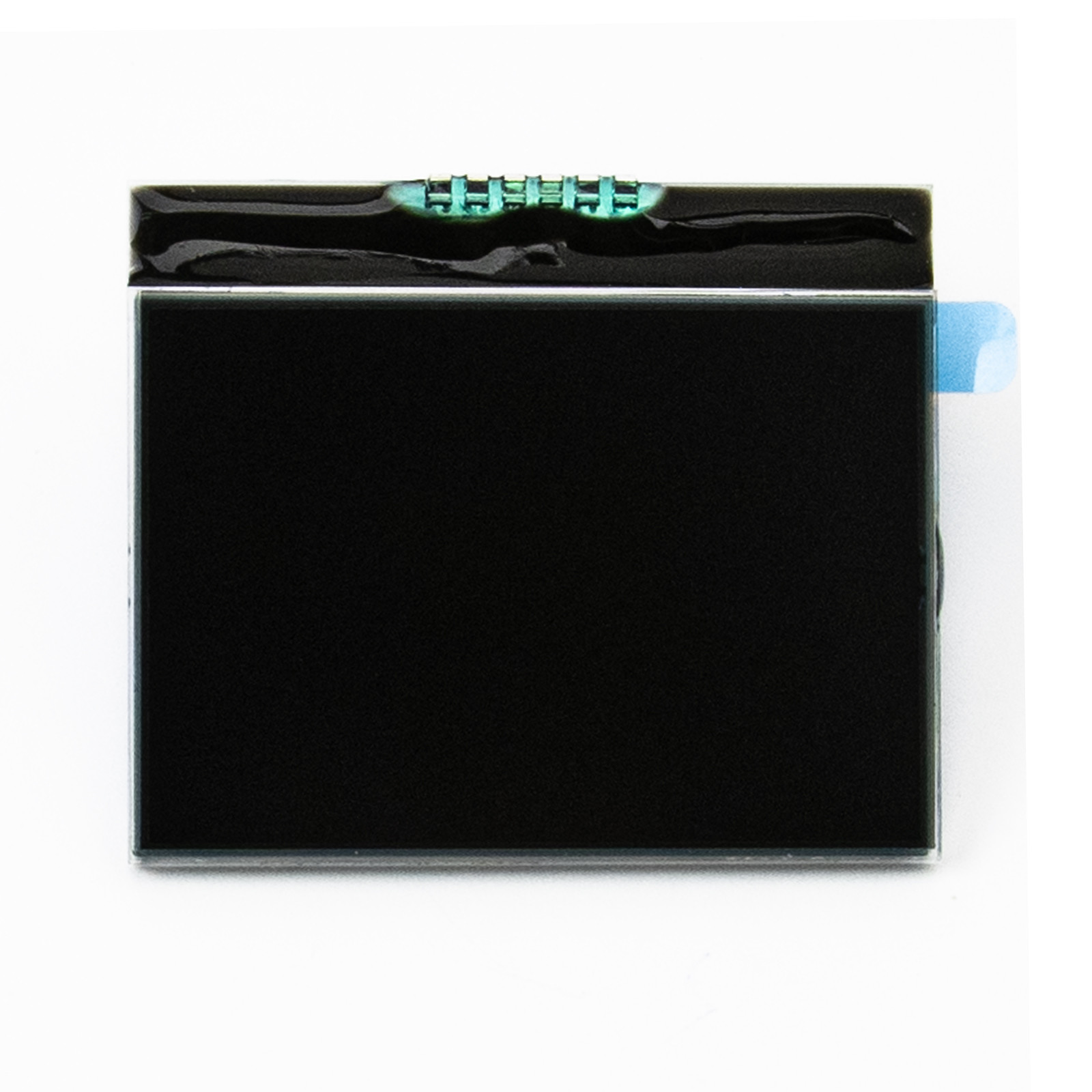

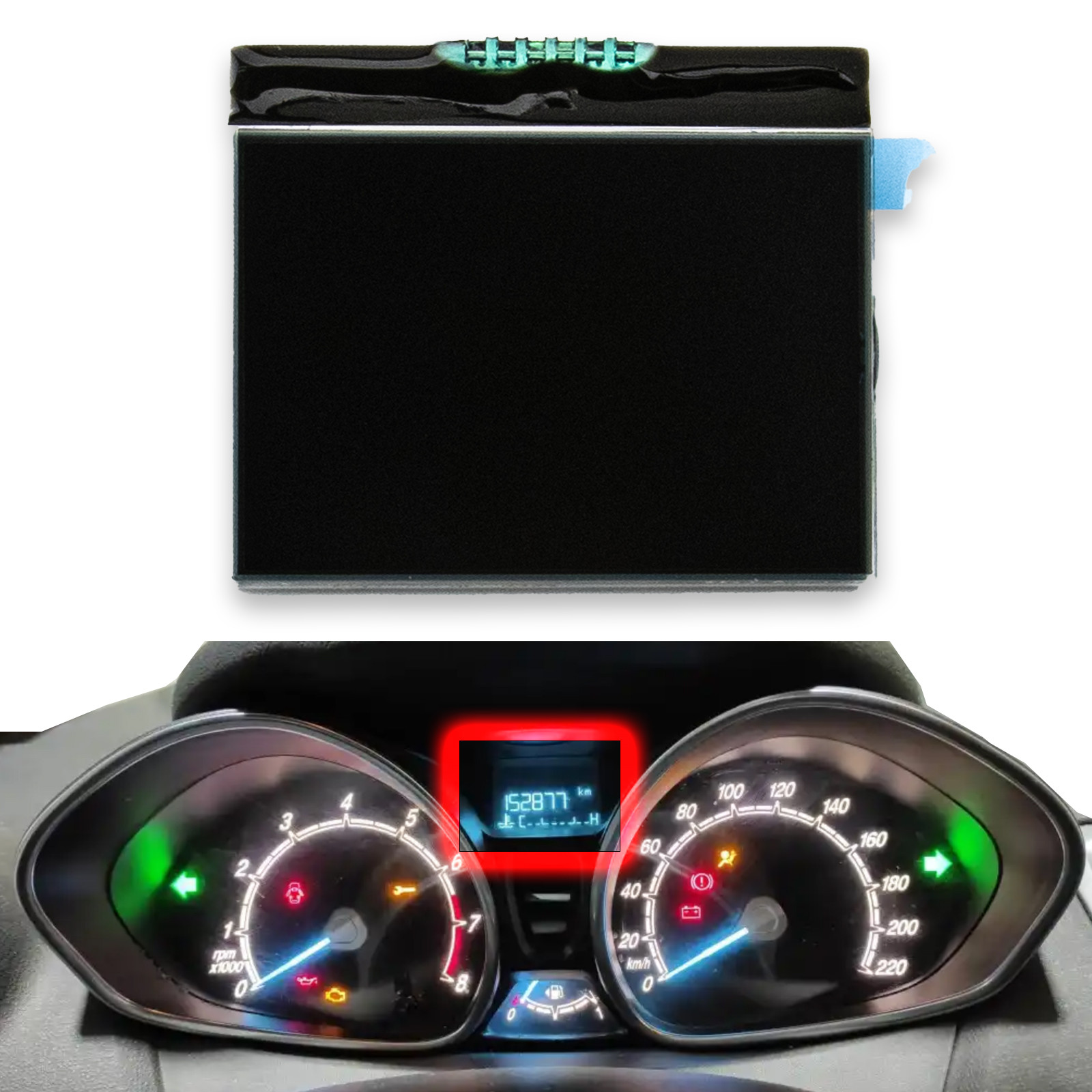

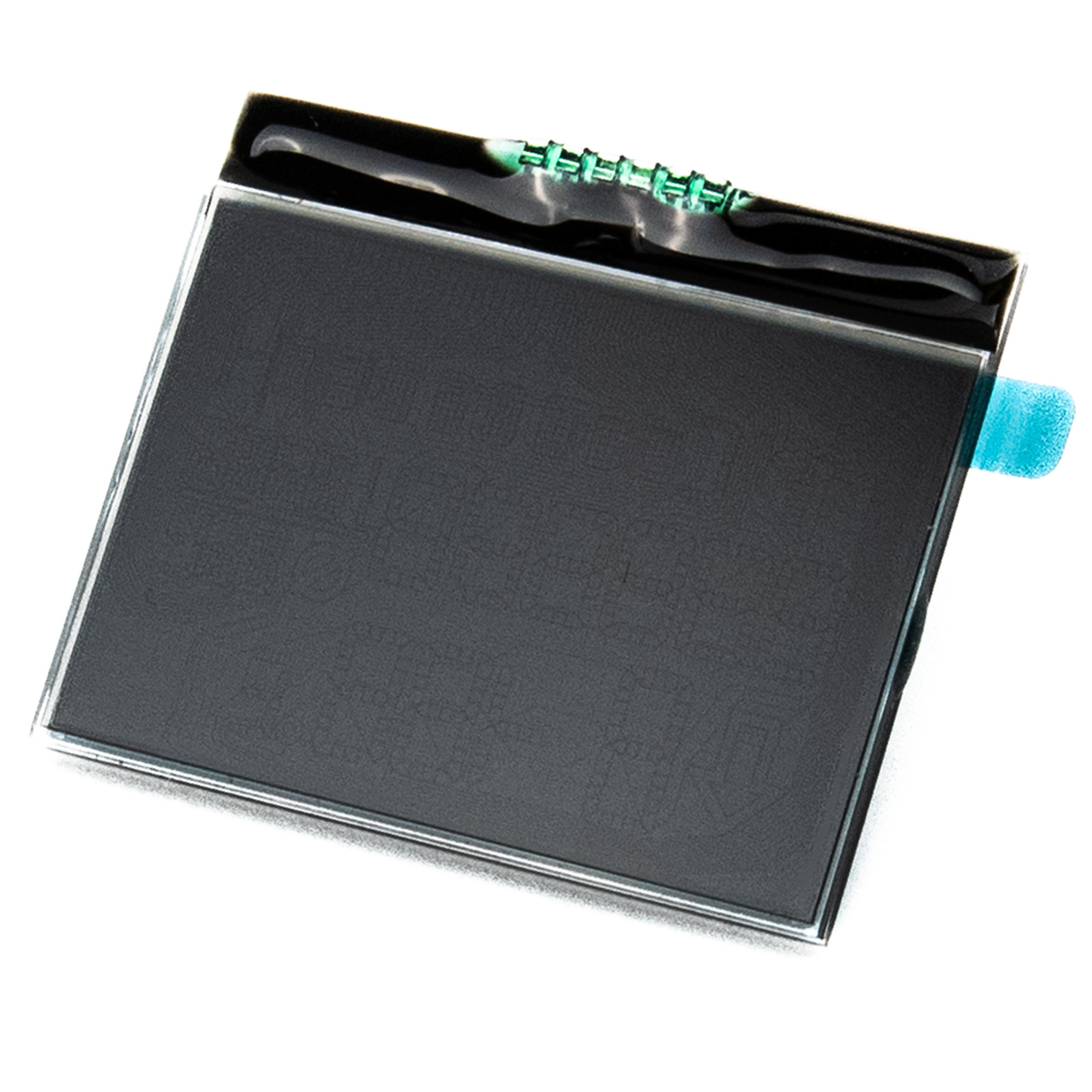

Ford LCD Display for Dashboard Instrument Cluster
LCD DISPLAY FOR DASHBOARD SPEEDOMETER INTRUMENT CLUSTER FOR FORD FIESTA B-MAX FORD ECOSPORT BK
Part numbers: C1BT-10849-EAN, C1BT-10849-EAU, C1BT-10849-EAX, C1BT-10849-GXN, C1BT-10849-NAG (ST), COG-VIST1067-02
Dimensions: 42 x 35 mm

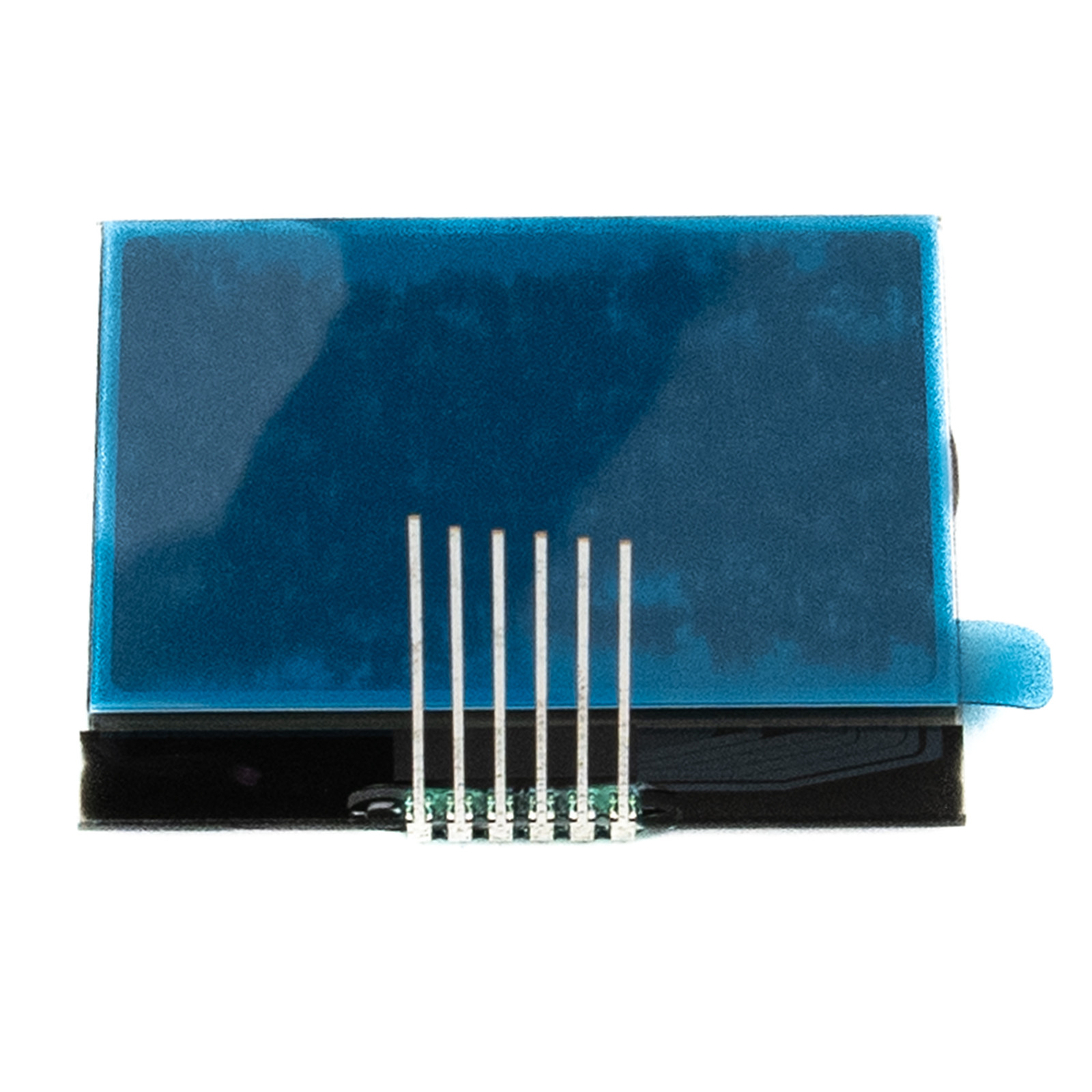

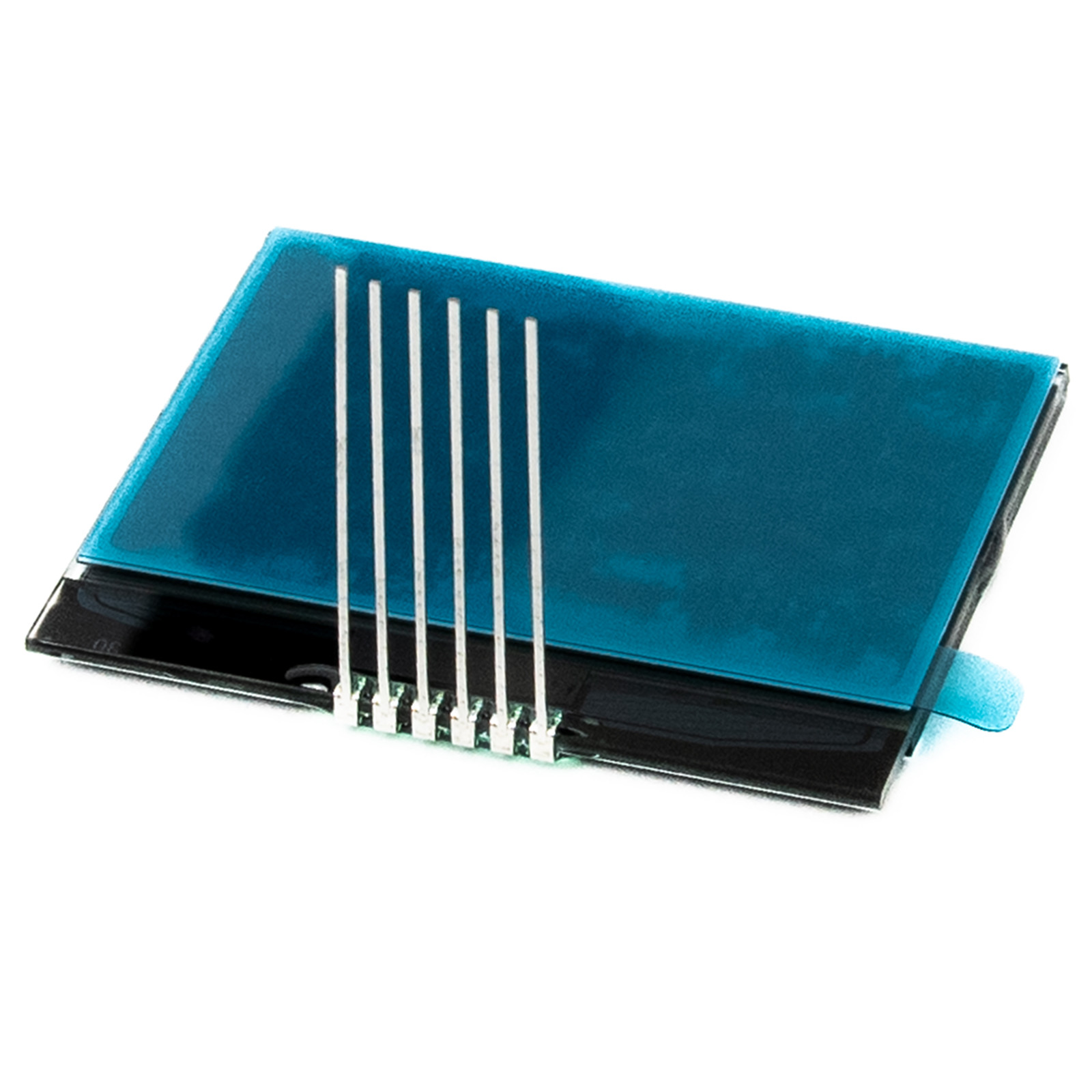

Connector pin: 6
Made of high quality glass.
Connector: Need Soldering
Placement on Vehicle: Speedometer Dashboard
LCD Display Dashboard Instrument Cluster For Ford
Specifications:
Part numbers: C1BT-10849-EAN, C1BT-10849-EAU, C1BT-10849-EAX, C1BT-10849-GXN, C1BT-10849-NAG (ST), COG-VIST1067-02
Dimensions: 42 x 35 mm
Connector pin: 6
Made of high quality glass.
Connector: Need Soldering
Placement on Vehicle: Speedometer Dashboard
What you will receive when your order is complete?
Brand new LCD Display Ford for Dashboard Speedometer.
This LCD Display is compatible with following models:
| Brand | Model | Year |
|---|---|---|
| Ford | Fiesta | 2013-2017 |
| Ford | B-Max | 2012-2018 |
| Ford | Ecosport BK | 2012-2017 |
* You are always welcome to ask us about the right car part for you.
NOTE THAT
This Display for Ford Instrument Cluster Pixel Repair is made of high quality glass and have the film protectors on it.
Make sure to peel them off from both sides.
Soldering needed.
We recommend professional service.
*Please compare your display and dashboard with the pictures!
*No encoding is needed, just replace the defective display with the new one.
Become our customer so YOU can enjoy:
Guaranteed top quality.
Secure payment followed by fast delivery.
You can be one of our more than thousands of satisfied customers.
Trademarks and brand names are only used to indicate compatibility.
How do I know if this display will fit my car?
Check the car make, model, year, and cluster part number against the product title before ordering.If you cannot find your part number, send us a photo of your current display and we will confirm compatibility.
Can I install this display myself or should I use a professional?
Professional installation is strongly recommended. These displays are fragile — ribbon cables, FPC connectors, and screen glass damage easily under incorrect handling. An automotive electrician or cluster repair specialist can install it safely.
What should I check on my car before installing the new display?
Clean the connector socket in the instrument cluster with electrical contact spray before fitting the display. Dust, old solder, and oxidation on the contacts can make a working display appear faulty.
What if the display still doesn't work after I replace it?
If the new display does not fix the problem, the fault is most likely not the display. Instrument clusters fail in multiple places — power circuits, microcontrollers, ribbon cables — with symptoms identical to a broken display. Have an automotive electrician diagnose the full cluster first.
How do I prepare the new display before installation?
Peel off the protective foil layer before installation. The foil is a transport-only layer — leaving it on blocks the screen image and may look like a faulty display.
Ford B-MAX 1 generation 2012 - 2018
- Compactvan 1.0 MT (100 hp) 2012 - 2018
- Compactvan 1.4 MT (90 hp) 2012 - 2018
- Compactvan 1.5 MT (75 hp) 2012 - 2018
- Compactvan 1.6 AMT (105 hp) 2012 - 2018
- Compactvan 1.5 MT (95 hp) 2012 - 2018
- Compactvan 1.0 MT (125 hp) 2012 - 2018
- Compactvan 1.0 MT (140 hp) 2012 - 2018
- Compactvan 1.6 MT (95 hp) 2012 - 2018
Ford EcoSport 2 generation 2013 - 2019
- Crossover 1.0 EcoBoost MT (125 hp) 2013 - 2019
- Crossover 1.5 MT (112 hp) 2013 - 2019
- Crossover 1.5 TDCi MT (90 hp) 2013 - 2019
- Crossover 1.6 MT (122 hp) 2014 - 2019
- Crossover 1.6 MT (110 hp) 2014 - 2019
- Crossover 2.0 MT 4WD (140 hp) 2014 - 2019
- Crossover 1.6 PowerShift (122 hp) 2013 - 2019
- Crossover 2.0 MT 4WD (143 hp) 2013 - 2019
- Crossover 2.0 MT (143 hp) 2013 - 2019
- Crossover 2.0 PowerShift (143 hp) 2013 - 2019
Ford Fiesta 6 generation Facelift 2013 - 2020
- Sedan 1.6 Ti-VCT PowerShift (120 hp) 2013 - 2020
- Sedan 1.6 Ti-VCT MT (120 hp) 2013 - 2020
- Sedan 1.6 Ti-VCT PowerShift (105 hp) 2015 - 2020
- Sedan 1.6 Ti-VCT MT (105 hp) 2015 - 2020
- Sedan 1.6 Ti-VCT MT (85 hp) 2015 - 2020
- Hatchback 5-doors 1.0 EcoBoost Powershift (100 hp) 2013 - 2020
- Hatchback 5-doors 1.0 EcoBoost MT (100 hp) 2013 - 2020
- Hatchback 5-doors 1.0 EcoBoost MT (125 hp) 2013 - 2020
- Hatchback 5-doors 1.0 MT (80 hp) 2013 - 2020
- Hatchback 5-doors 1.5 MT (112 hp) 2013 - 2020
- Hatchback 5-doors 1.5 TDCi MT (75 hp) 2013 - 2020
- Hatchback 5-doors 1.6 Ti-VCT PowerShift (120 hp) 2013 - 2020
- Hatchback 5-doors 1.6 TDCi MT (95 hp) 2013 - 2020
- Hatchback 5-doors 1.4 LPG MT (91 hp) 2013 - 2020
- Hatchback 5-doors 1.4 MT (96 hp) 2013 - 2020
- Hatchback 5-doors 1.6 TDCi ECOnetic MT (95 hp) 2013 - 2020
- Hatchback 5-doors 1.6 Ti-VCT PowerShift (105 hp) 2015 - 2020
- Hatchback 5-doors 1.6 Ti-VCT MT (105 hp) 2015 - 2020
- Hatchback 5-doors 1.0 EcoBoost MT (140 hp) 2015 - 2020
- Hatchback 5-doors 1.6 L Duratorq TDCi ECOnetic MT (90 hp) 2013 - 2020
- Hatchback 5-doors 1.25 MT (60 hp) 2013 - 2020
- Hatchback 5-doors 1.25 MT (82 hp) 2013 - 2020
- Hatchback 5-doors 1.4 TDCi MT (68 hp) 2013 - 2020
- Hatchback 3-doors 1.0 EcoBoost Powershift (100 hp) 2013 - 2020
- Hatchback 3-doors 1.0 EcoBoost MT (100 hp) 2013 - 2020
- Hatchback 3-doors 1.0 EcoBoost MT (125 hp) 2013 - 2020
- Hatchback 3-doors 1.0 MT (80 hp) 2013 - 2020
- Hatchback 3-doors 1.5 MT (112 hp) 2013 - 2020
- Hatchback 3-doors 1.5 TDCi MT (75 hp) 2013 - 2020
- Hatchback 3-doors 1.6 Ti-VCT PowerShift (120 hp) 2013 - 2020
- Hatchback 3-doors 1.6 TDCi MT (95 hp) 2013 - 2020
- Hatchback 3-doors 1.0 MT (64 hp) 2013 - 2020
- Hatchback 3-doors 1.4 LPG MT (91 hp) 2013 - 2020
- Hatchback 3-doors 1.4 MT (96 hp) 2013 - 2020
- Hatchback 3-doors 1.6 Ti-VCT MT (105 hp) 2013 - 2020
- Hatchback 3-doors 1.0 EcoBoost S MT (125 hp) 2015 - 2020
- Hatchback 3-doors 1.6 TDCi ECOnetic MT (95 hp) 2013 - 2020
- Hatchback 3-doors 1.25 MT (82 hp) 2013 - 2020
- Hatchback 3-doors 1.25 MT (59 hp) 2013 - 2020
- Hatchback 3-doors 1.6 Ti-VCT MT (85 hp) 2013 - 2020
- Hatchback 3-doors 1.6 TDCi S MT (95 hp) 2013 - 2020
- Hatchback 3-doors 1.6 Ti-VCT PowerShift (105 hp) 2013 - 2020
- Hatchback 3-doors 1.0 EcoBoost MT (140 hp) 2013 - 2020
- Hatchback 3-doors 1.4 TDCi MT (68 hp) 2013 - 2020
- ST hatchback 3-doors 1.6 EcoBoost MT (182 hp) 2013 - 2020
